Industrial Air Shaft: How It Works and How to Specify One

A shaft can fit a roll core and still be wrong for the line. An industrial air shaft must match the core interface and the demands of the roll-handling process, not just a product label.

It’s reasonable to focus first on how the shaft grips the core. In a typical design, air expands internal gripping elements against the core’s inside surface. Releasing the grip allows the roll to be removed. But core size alone doesn’t describe the full application. Roll weight, working width, machine connection, and operating conditions also matter.

This article explains the shaft’s role in roll handling, outlines the basic grip-and-release principle, and identifies which roll, core, and equipment details to gather before specifying one. Opensupply BV supplies air shafts and offers personal advice to help relate those technical details to your application. Start with the process, then use the relevant information to guide the specification.

What Is an Industrial Air Shaft, and Where Does It Fit in Roll Handling?

An industrial air shaft is a roll-supporting component that interfaces with a roll core and the surrounding machine equipment. It is one part of the roll-handling system, not the complete winding or converting machine.

The roll is the wound material. The core is the hollow centre that supports the roll. The shaft engages with that core, while the machine holds and positions the shaft during production. The precise interface depends on the equipment layout, so the shaft should be considered alongside the machine, not as a standalone substitute for it.

What role does an air shaft play in web converting?

Consider a converting line that unwinds a roll, feeds the web through a process, then winds the material into another roll. At the unwind station, the shaft supports the supply roll through its core as the web moves into the line. A shaft at the rewind station supports the core as processed material is wound onto it. In both positions, it connects the roll to the machine’s roll-handling arrangement.

Air expanding shafts use air to engage a roll core; the term is explained in this air expanding shafts reference. That describes a general category principle, not the construction or specification of every shaft.

Which production processes commonly use air shafts?

The relevant context is web converting and roll handling: operations that feed material from a roll, process it in a line, or wind it into a roll. An air shaft may be used where a roll core needs to connect with the equipment at an unwind or rewind position. The process determines its role. It doesn’t perform the converting operation itself; it supports the roll as the machine handles the web.

Separating the roll, core, shaft, and machine makes the specification clearer. Each has a distinct role, and their interfaces must suit the same application.

How an Industrial Air Shaft Holds and Releases a Roll Core

The basic operating sequence is engagement, support during handling, then release. In a pneumatic air shaft, air actuation expands an internal element so gripping parts press against the core’s inner surface. Releasing the actuation allows those parts to withdraw or relax, easing removal of the core. This describes a general mechanism, not the construction of every industrial air shaft.

What happens when the shaft is pressurised or released?

First, the shaft is positioned within the roll core. In a pneumatic design, air actuation causes the shaft’s gripping elements to engage the core. The shaft can then support the roll as part of the machine’s handling arrangement. When the actuation is released, the grip eases so the core can be removed. The exact internal layout and actuation method depend on the design.

How do air shaft designs differ?

Gripping elements may take different forms, such as lugs or strips, and internal expansion arrangements can vary. For example, a lug-style design described by one manufacturer uses free-floating lugs. That is a design-specific detail, not a feature shared by all air shafts or a specification of Opensupply’s product. Compare designs by how they interface with the core and machine, rather than assuming one mechanism applies to every shaft.

In a pneumatic air shaft, air actuation engages the core, the shaft supports it during handling, and release disengages the grip for removal. This sequence explains the principle without setting a pressure, load capacity, or cycle time. For a real installation, consider the surrounding machine and its guarding as well as the shaft; OSHA’s machine guarding requirements provide a reference for that broader equipment context.

To discuss how an air shaft fits your roll and equipment, explore Opensupply’s air shaft and prepare the relevant application details for a technical enquiry.

How to Specify an Industrial Air Shaft for Your Line

A useful specification starts with the actual core and machine, then adds the roll and process details that shape the application. Gather the information below before requesting an industrial air shaft. If a required dimension or operating limit is unknown, mark it for product-specific verification rather than estimating it.

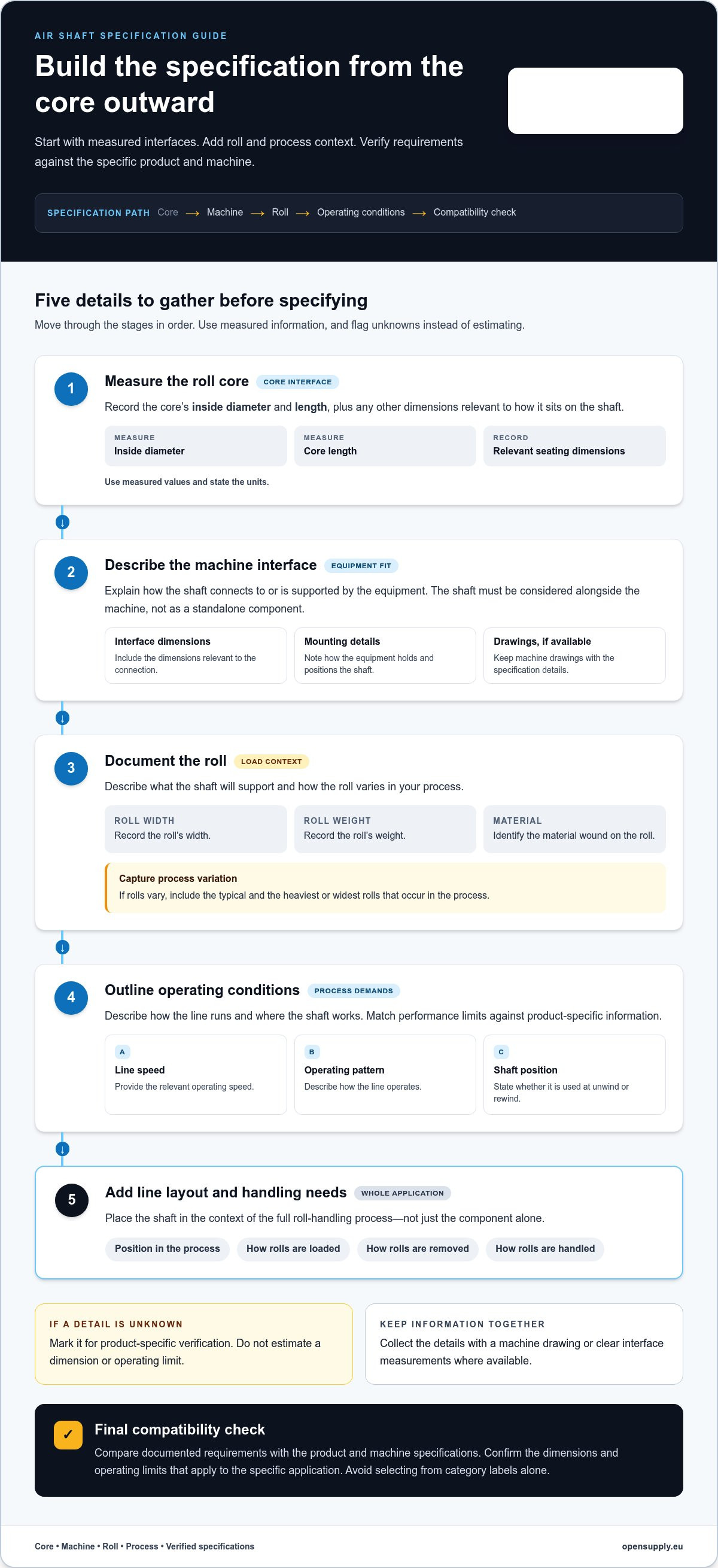

1. Record the roll core dimensions. Provide the core’s inside diameter and length, plus any other dimensions relevant to how it sits on the shaft. Use measured values and state the units.
2. Describe the machine interface. Note how the shaft connects to or is supported by the equipment. Include relevant interface dimensions, mounting details, and available drawings if you have them.
3. Document the roll. Record its width, weight, and the material wound on it. Include variations between typical and heaviest or widest rolls if those occur in your process.
4. Outline operating conditions. Describe line speed, operating pattern, and whether the shaft is used at an unwind or rewind position. Treat performance limits as items to match against product-specific information.
5. Explain the line layout and handling needs. Note the shaft’s position in the process and how rolls are loaded, removed, and handled. These details help frame the application beyond the component alone.

Keep the details together with a machine drawing or clear interface measurements where available. Roll-handling guidance from the Health and Safety Executive also provides relevant context for winding, reeling, and slitting equipment.

Avoid selecting from category labels alone. Compare your documented requirements with the product and machine specifications. Final compatibility depends on those verified specifications, including any dimensions and operating limits that apply to the specific application.

Opensupply offers personal advice before ordering. Discuss your air shaft application with Opensupply using the core, machine, roll, and process details you’ve gathered.

Explore Opensupply's Air Shaft and Get Technical Advice

Opensupply supplies an air shaft for industrial roll-handling applications. The right specification depends on how the shaft must interface with your roll core and machine, alongside the requirements of the production process. Start with the application details you’ve gathered, then use them to frame a focused technical enquiry.

What should an air shaft enquiry include?

Describe the application and where the shaft fits in the line. Include the core dimensions, relevant machine interface details, and roll characteristics such as width and weight. Add documented operating requirements and any available drawings or measurements. If a dimension or limit is unknown, identify it as an open question rather than estimating. This gives the technical discussion a clear starting point without relying on assumptions about a product’s design or performance.

How to contact Opensupply about an air shaft

Opensupply offers personal advice before or after ordering. Email is the fastest contact route: [email protected]. You can also call +31 541 700 260. Share the application and available specifications so the discussion can focus on how the industrial air shaft relates to your equipment and process.

Use the enquiry to clarify product-specific information against your documented requirements. Core measurements, machine connections, and roll details help distinguish what the line needs from general descriptions of air shafts. Any final compatibility decision should be based on the relevant product and machine specifications.

For technical advice about an air shaft, send your application details to Opensupply by email or call the number above.

Move Your Air Shaft Specification Forward

The next step is to turn your application notes into a clear basis for selection. Keep measured core and machine details together with the roll and process information, and separate confirmed requirements from points that still need technical review. This gives the discussion a practical focus and helps avoid relying on assumptions about what an industrial air shaft can accommodate.

Opensupply includes an air shaft in its industrial product range. With the application defined, you can explore the product and discuss the details that matter to your line.

Explore Opensupply's air shaft and request personal technical advice. A clear starting specification makes the next step easier.
